Lamilux  Skylight F100

Our glass and plastic round and rectangular skylight with plastic frame

Glass or Plastic

Rectangular or Round

Rectangular

The new standard for the industrial flat roof.
High level of stability under heavy loads. Reliable solution for all extreme weather conditions. Optimum thermal insulation with a U-value of up to 1.3 W/(m²K). Can be combined with smoke and heat exhaust ventilation units (pneumatic and electric). Greater safety on the roof thanks to 7 different fall-through protection grid variants. Available in over 50 sizes.

Round

Design highlight for the industrial flat roof.
Promotion of a healthy indoor climate and pleasant working atmosphere. Achieves thermal insulation values of up to 1.3 W/(m²K). Electrical ventilation options. Can be combined with lasered fall-through protection grid for greater safety on your roof. Available in 7 sizes and with 3 different opening variants

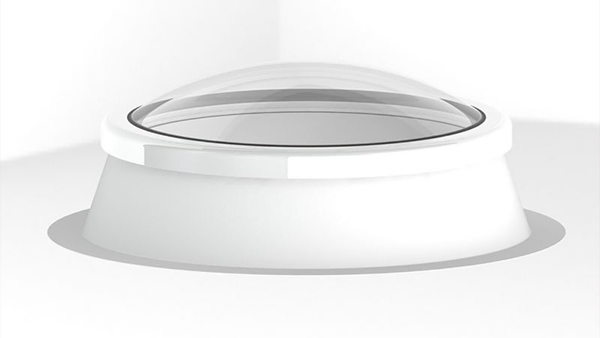

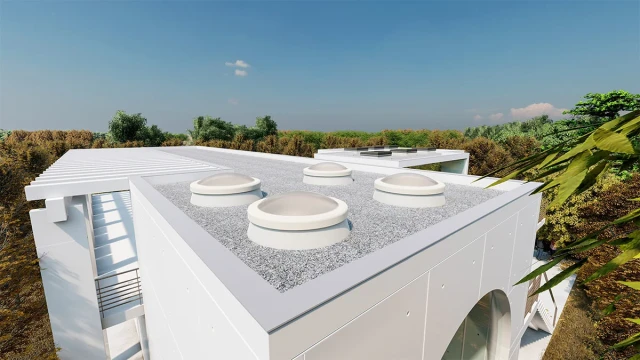

LAMILUX Rooflight Plastic F100 Circular

For the aesthetically demanding roof

The LAMILUX Rooflight F100 Circular brings natural daylight and distinctive design to industrial flat roofs. Its smooth, circular shape creates an architectural highlight while supporting continuous water drainage and a self-cleaning effect. The thermal-bridge-free construction and fully insulated GRP upstand help improve energy efficiency and reduce the risk of condensation, contributing to a comfortable indoor environment. Designed to withstand strong wind, heavy rain, hail and high snow loads, the rooflight provides reliable protection even in demanding weather conditions. Available in seven standard sizes and as a fixed or ventilated version, it can be adapted to different building requirements and provide natural fresh air where needed. Delivered fully pre-assembled, it enables quick installation, while optional fall-through protection adds further safety on the roof.

Stability

  • High resistance to wind load (UL 1500 - 5500) and snow load (DL 2500 - 10000) according to DIN EN 1873
  • Certified watertightness under heavy rain in storm conditions (DRI up to 14.7 m²/s, corresponds to approx. 8 l of rain per minute and m² in a 110 km/h hurricane)

Energy efficiency

  • Compliance with all requirements of the most recent Energy Performance of Buildings Directive (EnEV) and the German Building Energy Act (GEG) 2020
  • Fully insulated GRP upstand with a U-value of 0.67 W/m²K
  • Design completely free of thermal bridges for optimum U-values and reduced risk of condensation
  • Comprehensive Environmental Product Declaration (EPD) according to DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and EN ISO 14025

Comfort

  • Design highlight for the industrial flat roof through round design
  • Quick and easy installation for roofers thanks to completely pre-assembled delivery of the skylight
  • Self-cleaning geometry

Safety

  • Preventive fire protection: Compliance with DIN 18234 - Prevention of fire spread on rooftops without additional measures

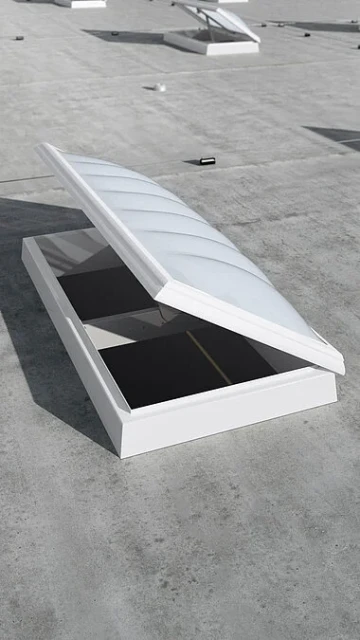

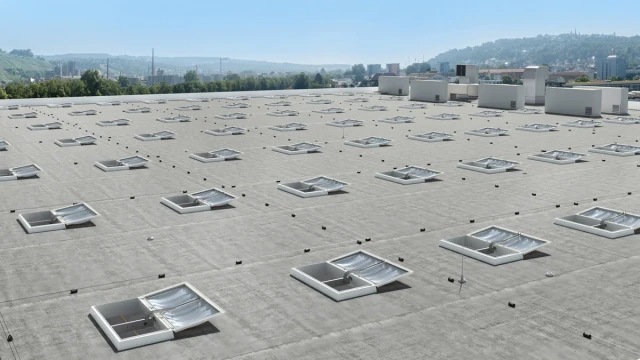

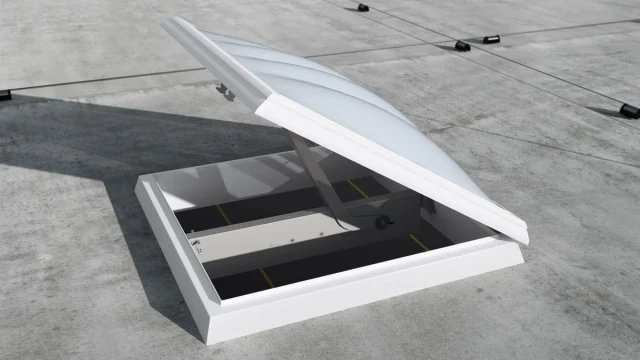

LAMILUX Rooflight Plastic F100 W

Design highlight for the industrial roof

The LAMILUX Rooflight F100 W is a durable and versatile skylight for industrial flat roofs. Its wave-shaped dome provides greater stability and helps the rooflight withstand strong wind, heavy rain, hail and high snow loads without adding extra weight. The thermal-bridge-free construction and fully insulated GRP upstand support good energy efficiency and help reduce the risk of condensation. [KH1] Delivered fully pre-assembled and available in more than 50 sizes, the Rooflight F100 W can be easily adapted to different roof constructions and project requirements. It is available as a fixed or ventilated unit, as a roof access hatch or as a smoke and heat exhaust system. Optional sun protection, insect protection and fall-through protection add further comfort and safety, making it a reliable solution for bringing natural daylight and fresh air into industrial buildings.

Stability

  • Greater stability under extreme loads due to geometrically optimised design
  • High resistance to wind load (≥ UL 1780) and snow load (≥ DL 3000) according to DIN EN 1873
  • Certified watertightness in heavy rain and during storms
  • Tested Driven Rain Index (DRI) up to 14.7 m²/s, i.e. approx. 8 l of rain per minute and m² in a 115 km/h hurricane
  • Certified hail resistance according to the VKF test regulations – up to the highest resistance class HW 5, depending on the glazing

Energy efficiency

  • Fulfilment of all requirements of the current Energy Performance of Buildings Directive (EnEV) and the German Building Energy Act 2020 (GEG)
  • Fully insulated GRP upstand with a U-value of 0.95 W/m²K
  • Perfect thermal connection (e.g. a thermal insulated base flange)
  • Design completely free of thermal bridges for optimum U-values and reduced risk of condensation
  • Excellent life cycle assessment due to comprehensive Environmental Product Declaration (EPD) according to DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and EN ISO 14025

Comfort

  • Quick and easy installation thanks to pre-assembled delivery of the skylight
  • Safe and easy installation within a variety of roof types and roof sealing systems
  • Optional: Aluminium and steel sheet upstands
  • Self-cleaning geometry

Safety

  • Fall-through protection during installation for certain glazing types, valid for 1 year after manufacture for certain glazing types
  • Preventive fire protection: Compliance with DIN 18234 for the prevention of fire spread on rooftops without the requirement for additional measures
  • Available as Smoke Lift F100 W which fulfils the requirements of EN 12101-2 for smoke and heat exhaust ventilation units

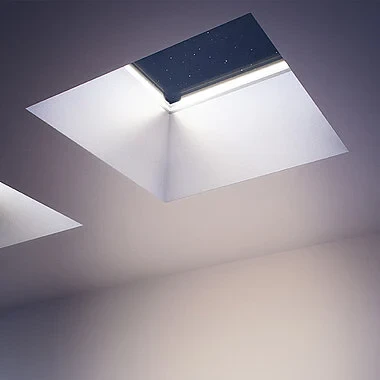

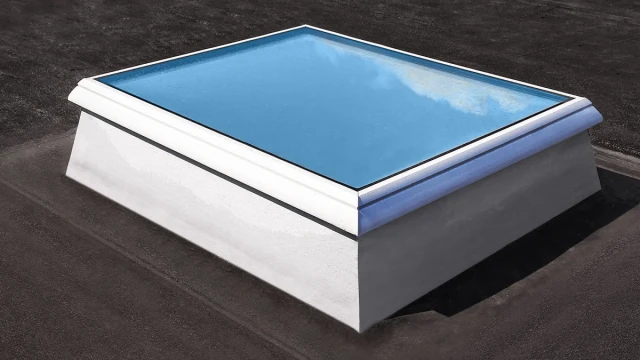

LAMILUX Glass Skylight F100

The PVC framed flat roof glass skylight with maximum energy efficiency and thermal insulation

The LAMILUX Glass Skylight F100 combines durable construction with a clean, modern design for residential, educational, administrative and industrial buildings. Its thermal-bridge-free structure, double balloon sealing system and thermally insulated GRP upstand support excellent insulation and airtightness for a comfortable indoor climate throughout the year. The smooth transition between the glazing and frame allows rainwater to drain freely, helping to prevent dirty edges and reduce maintenance. Available with double or triple glazing, the skylight provides generous daylight, effective sound insulation and lasting clear views through scratch-resistant safety glass. Concealed chain drives enable natural ventilation without disrupting the interior appearance, while optional sun protection adds further comfort. Delivered fully pre-assembled and BIM-ready, the F100 ensures efficient planning and installation. For refurbishment projects, an adapter frame can create a 5° inclination for improved water drainage. Permanent fall through protection, tested weather resistance, and fire performance complete this reliable daylight solution.

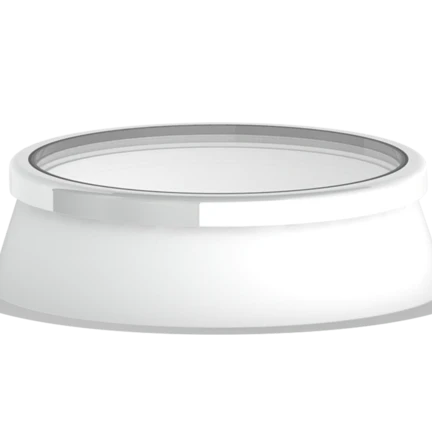

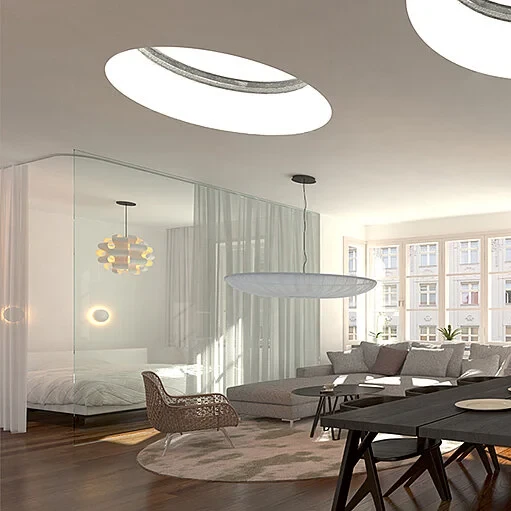

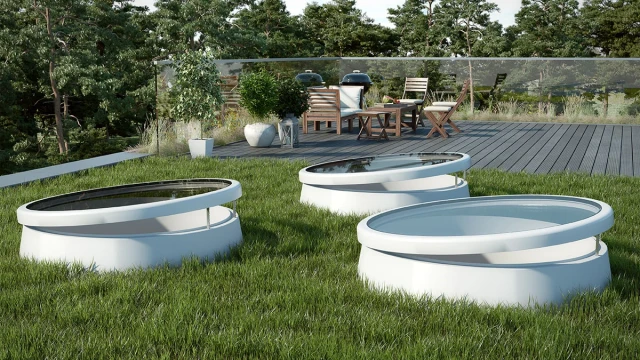

LAMILUX Glass Skylight F100 Circular

Advantages at a glance

With its pure circular geometry, the LAMILUX Glass Skylight F100 Circular becomes an architectural highlight on any flat roof—setting bold design accents while delivering exceptional daylight. Its thermal-bridge-free construction, thermally insulated GRP upstand and balloon double-sealing system support excellent energy efficiency, airtightness and year-round comfort. Safety glazing ensures lasting clear views, while the smooth transition between the glass and frame allows rainwater to drain away freely. An optional upstand with a 5° inclination further improves water drainage and supports a self-cleaning effect. Concealed drives enable natural ventilation without disrupting the clean interior appearance. Delivered fully pre-assembled and BIM-ready, the skylight allows for efficient planning and installation. Permanent fall-through protection, tested weather resistance and preventive fire protection complete this elegant and durable daylight solution.
